Wall Mounted Payment Terminal SKT-F76 Series P10

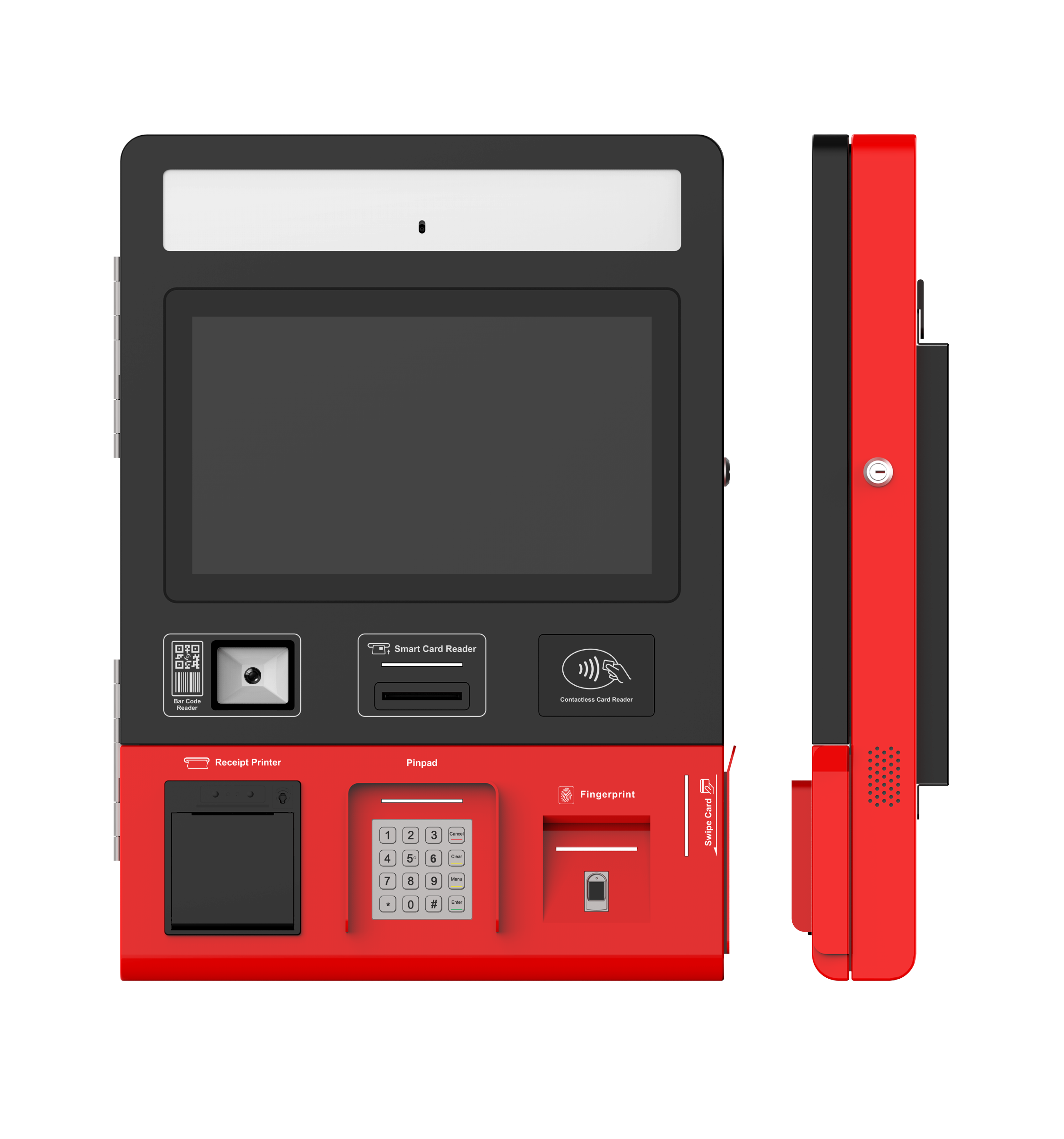

The Wall Mounted Payment Terminal SKT-B4015-A01 is specially designed for scenarios such as Gas stations, Banks, Hospitals, or other half-open places with rain shields. Touch LED screen is ideal for easy and simple operations.

Features :

  • The wall hanging is ultra-thin, the size is small, and the footprint is small, which meets the hospital registration, number taking and payment business, alleviates the pressure of hospital queuing, and improves the efficiency of hospital service.
  • Voice, text, animation and other information navigation, guide the operation.
  • Touch screen operation, simple and convenient.

    • Scenarios:

    Malls, supermarkets, grocery stores, etc.



    Basic Features:

  • Inquiries, transfers.
  • Change the password.
  • Fingerprint recognition.
  • Slip printing.
  • NFC card reade.

    • Optional Features:

  • Info broadcast
  • Foreign exchange, treasury bonds, fund trading
  • Pay for water, electricity, gas and other businesses

    • Extended Features:

  • Remote upgrade
  • System monitoring
  • Alarm system

    • Standard Product Configuration

    Module Performance Parameters
    MAIN CONTROL Low power consumption motherboard, Integrated 6412CPU, 1 notebook 1.35V memory slot; 1 VGA, 1 HDMI; 7U6 series. The hard disk can be inserted flatly above the mainboard, powered by DC12V, suitable for thin chassis.
    CAPACITIVE INTEGRATED SCREEN 21.5-inch capacitive integrated screen, LVDS interface, DC12V, resolution 1920*1080, integrated capacitive touch display, USB interface, resolution 4096*4096, passed 3C certification, equipped with LVDS line 60CM, backlight power line 35CM.
    4 IN 1 CARD READER USB interface, support contactless card reader, contact IC card (social security card), second generation ID card, magnetic stripe card, pass PBOC3.0.
    RECEIPT PRINTER DC12V/2A, RS232/USB interface, paper width 58mm, can support a maximum roll diameter of 50mm, with paper near-end alarm, black mark detection, anti-jam function.
    QR CODE READER USB interface, scanning method: two-dimensional image (838 x 640 pixels), supports commonly used PDF417 two-dimensional barcode, Data matrix two-dimensional barcode, QR Code, GM Code, supports reading paper, LCD, mobile phone screen and other media barcode information.
    FACIAL RECOGNITION CAMERA USB interface, 5 million, support face recognition, live detection
    ENCRYPTED PIN PAD Standard USB interface, UnionPay national secret certification, waterproof, dustproof, anti-riot and anti-leakage, single DES, double DES, triple DES algorithm, unpacking self-destruct program.
    COMMUNICATION METHOD Ethernet TCP/IP communication.
    SIU BOARD RS232 interface, DC12V, control multiple safety switches, support peripheral expansion
    POWER SUPPLY AC220V AC input and output 150W, DC12V12A

    Appearance:

    Fashionable and beautiful, simple and generous, very three-dimensional. The color matching is reasonable.

    Performance:

    Low power consumption, good heat dissipation effect, stable performance, long service life.

    Function:

    Reservation, registration, number collection, payment, inquiry.

    Structure :

  • The internal space is relatively tight and the structural layout is reasonable
  • The wiring is neat and standardized
  • Separation of strong and weak electricity to avoid interference

    • Material

    The whole machine is made of high-quality steel, hard and thick, not easy to deform, waterproof, dustproof, riot-proof, wear-resistant.
