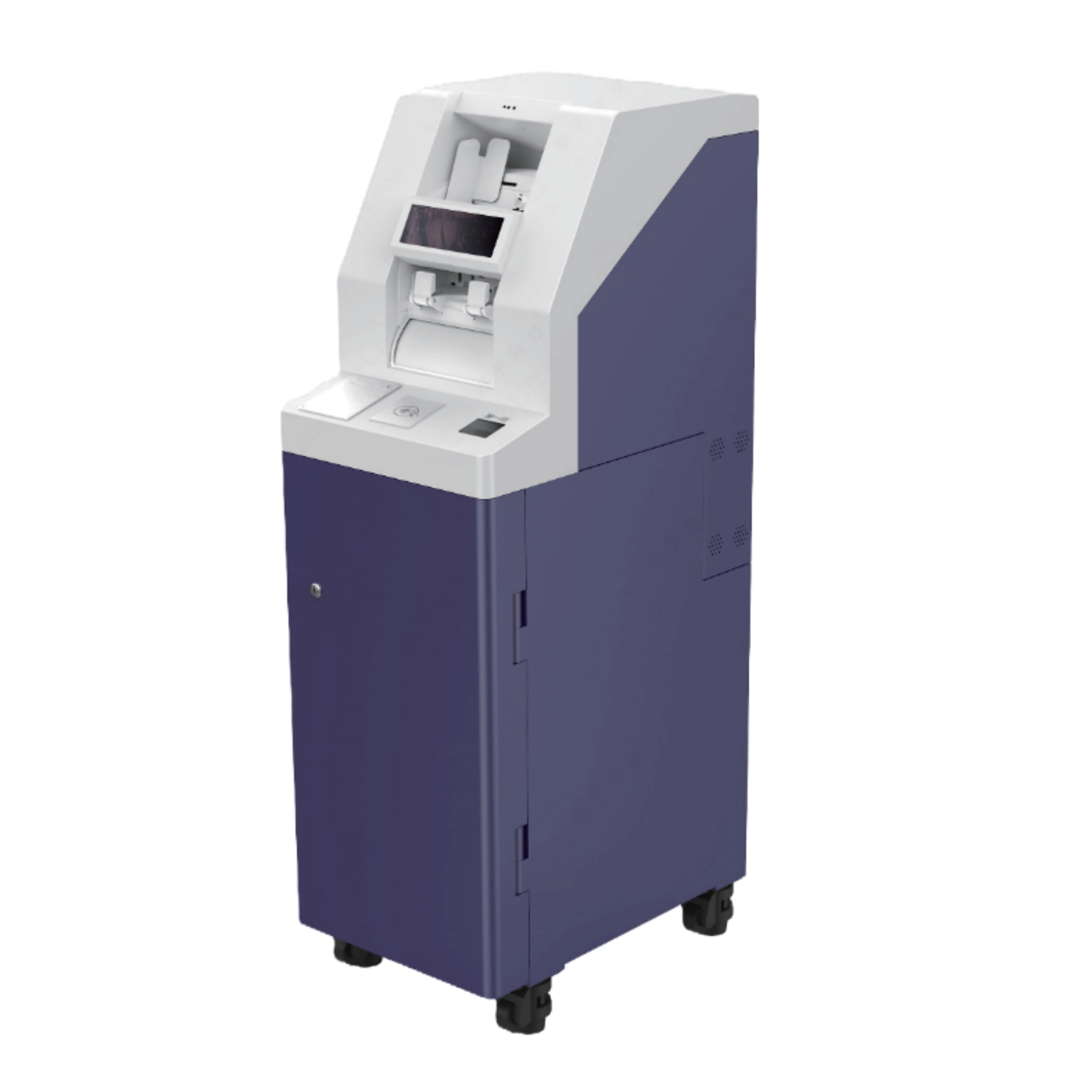

Smart Cash Deposit Machine SKT-D1039-C01


This Smart CDM Model SKT-D1039 is specially designed to enhance the banknote or cash collection and optimize the deposit process in the retail industry.

The problems for cash collection in the back office in the retail industry:

  • The increasing cost of the back office staff.
  • High risk of collecting and accepting fake cash.
  • Slow Accounting process, where the retail owner cannot know the cash level until the money is transferred to the bank account.
  • Increasing cost and strict regulation of the cash transportation from the bank side.

    • SUNSON realized the importance of proposing and developing a new solution to help retailers overcome these problems and enhance the business process.

    Therefore, SUNSON introduces a solution that consists of:



    Hardware Machine

    A self-service kiosk enhances the cash counting, detection, and storing process. SUNSON provides an innovative and influential cash-acceptor and validator that can accept up to 720 Notes per minute and verify the cash using three different technologies to ensure 99% of the accepted currency is genuine. Also, SUNSON hardware solution has an advanced, intelligent, and secured 8mm safe box in thickness and UL291 Compliant with a complete set of heat/movement detection sensors that connect to a real-time email/message alerting system.

    Software Application

    With such a powerful hardware product, Retailers need a software solution to maximize the retailer benefits.

    Therefore, SUNSON developed a real Time Terminal Monitoring Solution (TMS) that can help retailers to enhance their business and make decisions based on the generated reports from SUNSON Solution.



    Module Specification

    Module Specifications
    Main Control RK3288 chip, ARM Cortex-A7 4-core processor, CPU main frequency 1.8GHZ, 2G memory, 8G storage, 2 RS232, 7 USB, 1 HDMI, 1 LVDS, support dual screen, alienation, support WIFI, Bluetooth, 4G functions.
    Capacitive Screen 7-inch capacitive all-in-one screen, LVDS interface, multi-point capacitive touch, maximum resolution 1280 x 600;
    Deposit Module RS232 interface, AC110-220V, deposit capacity of 400 bills, maximum capacity support 50 bills, temporary port capacity of 100, counting speed 800/1000 sheets / minute (MIX mode); Support mixed deposit, crown code identification, envelope deposit, remote software upgrade, identify 8 kinds of counterfeit party, through gold certification, can support different countries' currencie
    Slip Printer DC24V/3A, RS232 interface, LPT, USB interface, paper width 80mm, can support the maximum roll diameter of 120mm, with paper will be all alarm, black label detection, anti-jam function
    Dynamic Digital Lock Offline password lock, for the safe locking and opening function, with a strict encryption mechanism, can be authorized authentication and encryption, decryption processing function, UL authentication.
    Banknote Bag Banknote bag capacity of 10,000, optional 20,000, support waterproof, fireproof, banknote bag with card blocking function, each product equipped with 2 banknote bags
    Weight 165 KG

    Product Attributes

      • Model No. : SKT-D1039-C01
      • Brand Name : SUNSON TECH
      • place of origin : China
      • Warranty : 1 year
      • logo : Can Be Customized.
      • type : free Standing.
      • Material : Cold Rolled Steel.
      • Color : Can Be Customized.
      • After sales service : Online technical Support

    Supply Ability & Additional Information

      • Packaging : Protective film+wooden case
      • Productivity :1000 units per month
      • Transportation :Ocean,Land,Air,Express
      • Place of Origin : China
      • Supply Ability :1000units per month
      • Certificate :ISO9001
      • HS Code : 84716040
      • Payment Type :L/C,T/T
      • Incoterm :FOB,CIF,CFR,EXW

    Application Scenarios:

      • Gas station.
      • Shopping malls.
      • Hospitals.
      • High-speed roads, railways.
      • Power grid, post office.

    Features:

      • Mixed deposit, envelope deposit, serial number reading, real-time transaction data.
      • Intelligent cash flow management improves work efficiency and reduces operating costs.
      • Anti-riot design, safe, durable, stable.
      • voice, text, animation, and other information navigation, easy operation.
      • Support touch operation is simple and convenient.
      • Easy to expand, easy to maintain.

    Appearance:

    The primary color mainly has red, green, and blue three colors, can also be customized according to customer demand for other colors; cabinet made of cold-rolled plate, the surface finished with high-quality outdoor powder treatment, and waterproof, rust-proof, anti-corrosion, wear-resistant.

    Basic

      • Cash Deposit
      • Envelope deposit
      • Receipt printing
      • Monitoring system
      • Alarm system

    Optional

      • Utility bills payment
      • Network management
      • Information broadcast

    Also Available

      • QR code scanner
      • Fingerprint reader
      • NFC card reader
      • Facial recognition

    Appearance

    The design is stylish and generous, simple and exquisite, and the colors are bright and harmonious.

    Feature

    Low power consumption, good cooling effect, stable performance, long service life.

    Material

    The whole machine is made of high-quality steel, rugged and thick, not easy to deform, waterproof, dustproof, anti-riot, wear-resistant.

    Movement & Maintenance

    It is equipped with a casters cup, easy to move, and easy to handle.

    Structure

      • The internal structure layout is reasonable;
      • Equipped with casters cup, easy to move;
      • Movement rail design, easy maintenance;

    Function

      • Cash deposits can handle top-up payments and other business.
      • Touch operation, simple and intuitive, user-friendly, robust user experience.
      • Reserved interface, easy to expand.
